North Atlantic Right Whale Monitoring in the Southeast Calving Area

Status

No topics.

Ocean

Region

Introduction & Objectives

The endangered North Atlantic right whale (Eubalaena glacialis) migrates to coastal waters off Florida and Georgia during the winter months. This important habitat overlaps with U.S. Navy training and testing activities off Jacksonville, Florida, including the Jacksonville Shallow Water Tracking Range (JSWTR). In addition, the port of Jacksonville hosts a significant amount of commercial shipping traffic with the designated shipping lanes running directly through this important seasonal habitat.  Due to the critical conservation status of North Atlantic right whales and their reliance on acoustic communication, there is an important need to better understand right whale habitat use and acoustic behavior in the region.

We will be conducting a targeted tagging program using non-invasive Digital Acoustic Recording tags (DTAGs) to address these knowledge gaps by collecting horizontal movement, dive profile, and vocalization behavior data from individual whales off Jacksonville, Florida during winter.  These data are important to inform monitoring and mitigation techniques and to increase our understanding of the potential for disturbance to right whales.

Technical Approach

Research methods include vessel-based visual surveys supporting photo identification and tagging. The tagging component involves deploying non-invasive, short-term (ca. 24 hour) suction cup tags – which include Fastloc GPS technology, time-depth recorders, 3D movement measurements, and multi-sensor acoustic recorders. Focal follows have also been conducted to gather additional behavioral informationand in 2016, opportunistic unmanned aerial system monitoring with the MicroKopter HexaXL was also conducted. The UAS was equipped with a high-resolution camera and collector plate to sample whale blows. All field work is conducted under NOAA NMFS Permit #17355.

Progress & Results

The field team consisting of members from Duke University and Syracuse University conducted field work out of Fernandina Beach, Florida during February 2014, February-March 2015, February-March 2016, and February 2017. Through this research, 16 right whales have been tagged, the majority of which have been mother-calf pairs, leading to new insights on their movements, call types and rates, and dive behavior in the Southeast calving area. In addition, work and analyses were undertaken focused on sound propagation modeling, creating and testing algorithms for detection and classification of right whale calls, and analyses of behavioral ontogeny and individual distinctiveness of right whale calls.

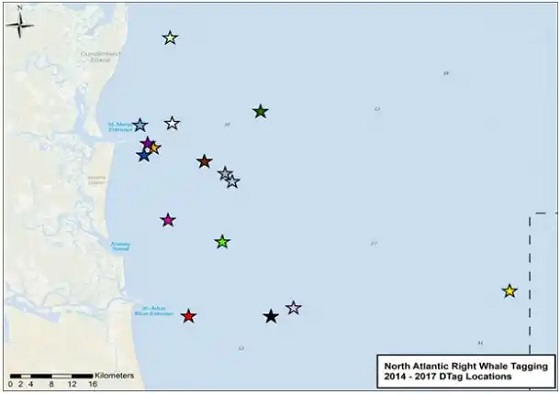

Dtag deployment location map

Dtag deployment locations 2014-2017

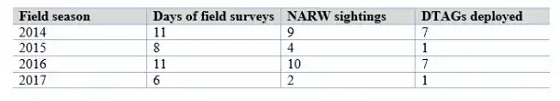

Field day summary table

Summary of field days, sightings, and Dtags deployed 2014-2017

Overall Findings

Diving behavior: Researchers analyzed existing DTAG data from January-March 2006 and 2014-2016, which included 15 tag deployments. They found that whales spent an average of 59.1 percent (+/-16) of time at depths below 2.5 meters, which is below the depth of visual survey method detection. Juveniles spent the most time below this depth than other age classes (Nowacek, Parks, and Read 2017). Whales of all ages and sex classes spend majority of their time outside the visual detection range of vessel or aerial surveys, which impacts detectability on calving grounds. These data have recently been summarized and published (Dombrowski et al. In press).  Another diving behavior related effort to be summarized is the tag attached to an entangled whale.  In February 2014 the Duke team working on this project was well offshore to survey the area designed for the then future underwater training range. The team spotted a traveling right whale, which, upon closer inspection and with the help of the aerial survey that was working in concert with the tagging effort, was seen to be carrying some fishing gear.  A DTAG was successfully attached to the flank of the whale, and the data from that tag were used in an analysis of the kinematics and swimming efficiency of this and another entangled whale (van der Hoop et al. 2017).

Acoustic analysis: Using acoustic data from DTAG deployments from 2014-2016, Syracuse University researchers have recorded 85 hours of acoustic data from right whales on calving grounds. Researchers identified that the upcall production rates, the primary call used for right whale passive acoustic monitoring (Van Parijs et al. 2009), is much higher for a pregnant female than lactating females, first reported in Nowacek, Parks, and Read (2018). These recordings have also identified novel, previously undescribed call types produced by mother-calf pairs on the calving grounds, which are low amplitude and not detectable unless in close proximity to the whales. The calls identify a new mode of communication between mothers and calves that could be impacted by noise in the environment (Parks et al. 2019a). Other acoustic findings from the project include: the general acoustic environment of the whales in this area (Parks et al. 2017); the presence of individual identity information in upcalls (McCordic et al. 2016); general calling behavior of whales while in the area (Parks et al. 2019b).  Finally, the acoustic data from this project have also been used in wider analyses of right whale vocal behavior (Root-Gutteridge et al. 2018).

Project Videos

Project Information

Timeline

2014-2017

Location

Southeast calving grounds (GA/FL)

Observational methods combined with short term (ca. 24 hour) non-invasive suction cup attached multi-sensor acoustic recording tags with Fastloc GPS.

Conceptual Framework

Performing Organizations

Principal Investigators

Dr. Doug Nowacek
Duke University Marine Lab
Marine Conservation Ecology Group

Dr. Susan Parks
Syracuse University
Department of Biology

Sponsor(s) & Funding

    FY13 - $335K, FY14 - $390K, FY15 - $505k, FY16 - $390k

    Point of Contacts

    Program/Project Manager
    Joel T. Bell
    NAVFAC Atlantic
    Environmental Conservation, Marine Resources Section

    Data, Reports, & Publications

    Technical Reports

    +
    More details Collapse details

    The primary objective of this targeted tagging program is to fill these knowledge gaps by collecting data on horizontal movements, dive profiles, and vocal behavior from individual right whales using non-invasive, suction-cup-attached, digital acoustic tags (DTAGs). In 2017, our expanded objectives included: (1) continuing to increase the sample size of extended-duration tag attachments, along with Fastloc® Global Positioning System (GPS) technology.

    Type: Ocean: Region: Species: Methods:
    More details Collapse details

    The primary objective of this targeted tagging program is to fill in these knowledge gaps by collecting data on horizontal movements, dive profiles, and vocal behavior from individual right whales through the use of non-invasive, suction-cup-attached, digital acoustic tags (DTAGs). In 2016, our expanded objectives included: (1) continuing to increase the sample size of extendedduration tag attachments, along with Fastloc® Global Positioning System (GPS) technology and (2) adding the capability for aerial photography using unmanned aircraft systems (UAS).

    Type: Ocean: Region: Species: Methods:
    More details Collapse details

    The primary objective of this targeted tagging program is to fill in these knowledge gaps by collecting data on horizontal movements, dive profiles, and vocal behavior from individual right whales. These objectives were accomplished using non-invasive suction-cup tags (anticipated tag duration from 1 to 36 hours) that included Fastloc® Global Positioning System technology, time-depth recorders, three-dimensional movement measurements, and acoustic recordings. National Marine Fisheries Service permits to conduct this research are held by Duke University with Dr. Nowacek as lead investigator and Dr. Parks as named co-investigator. Institutional Animal Care and Use Committee approval was obtained from Duke University and Syracuse University prior to data collection.

    Type: Ocean: Region: Species: Methods:
    More details Collapse details

    Researchers proposed a targeted tagging program to fill in these knowledge gaps by collecting data on horizontal movement, dive profiles, and vocal behavior from individual right whales in February 2014. These objectives are accomplished using non-invasive suction cup tags (anticipated tag duration from 1 to 36 hours) that included Fastloc® Global Positioning System (GPS) technology, time-depth recorders, three-dimensional movement measurements, and acoustic recordings.

    Type: Ocean: Region: Species: Methods:
    More details Collapse details

    We proposed a multi-year targeted tagging program to fill in these knowledge gaps, by collecting horizontal movement, dive profile, and vocal behavior from individual right whales using non-invasive suction cup tags (anticipated tag duration from 1-36 hours) including fastloc GPS technology, time depth recorders (TDR), 3-D movement measurements, and acoustic recordings. NMFS permits to conduct this research are held by Duke University with Dr. Nowacek as lead investigator and Dr. Parks as co-investigator. IACUC approval was obtained from both Duke University and Syracuse University IACUC committees prior to data collection.

    Type: Ocean: Region: Species: Methods:
